Model Number: GT06-C001-BD
Operating Temperature: -40℃~+80℃
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 21mm
Total Travel：3.50±0.20mm
Added Light guide diffuser, RGB lighting effects optimized.
Application: Gaming, RGB gaming keyboard;

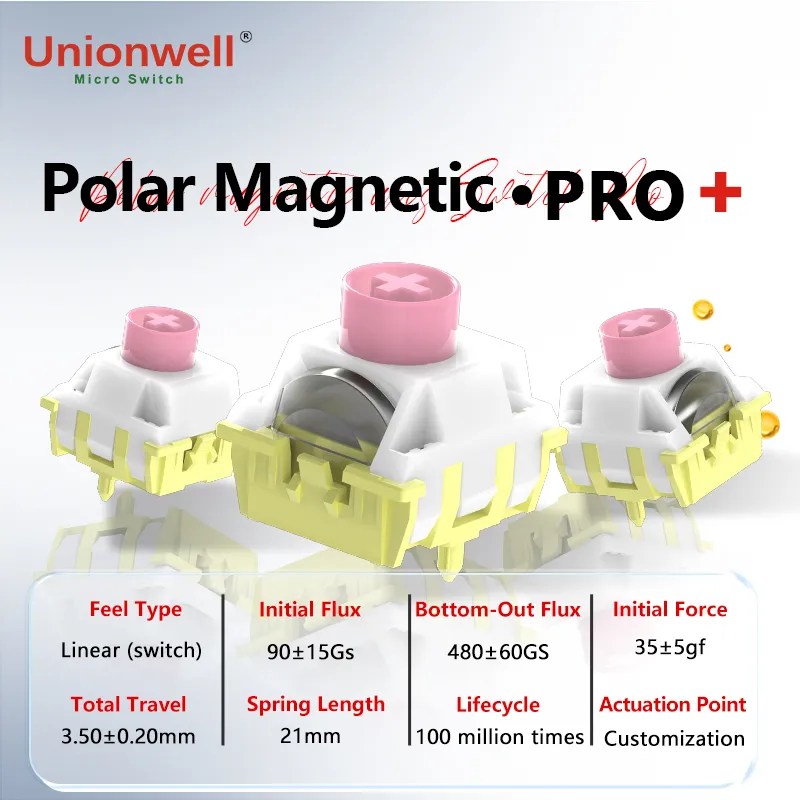

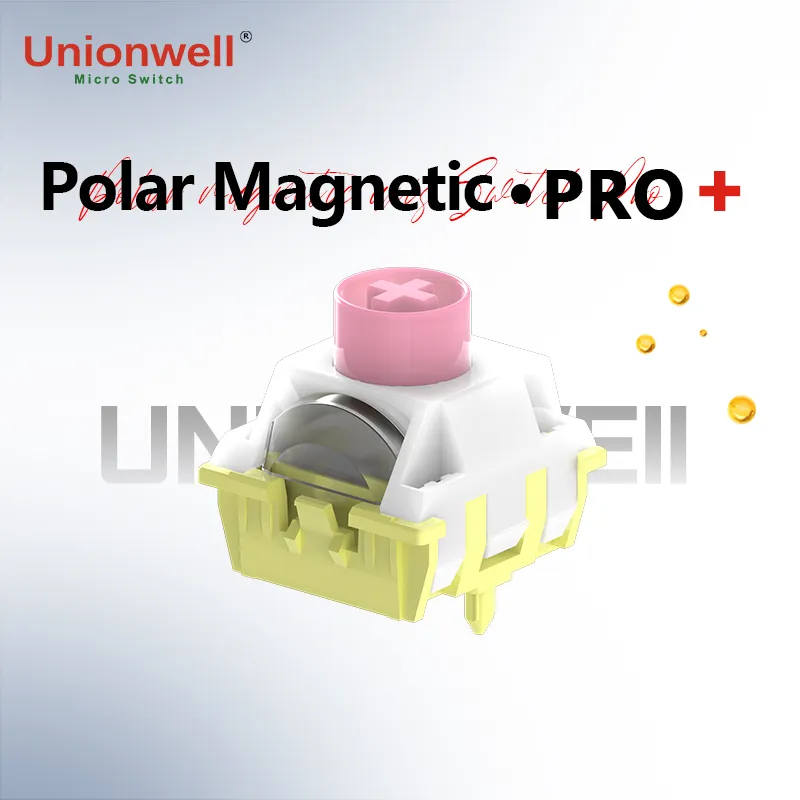

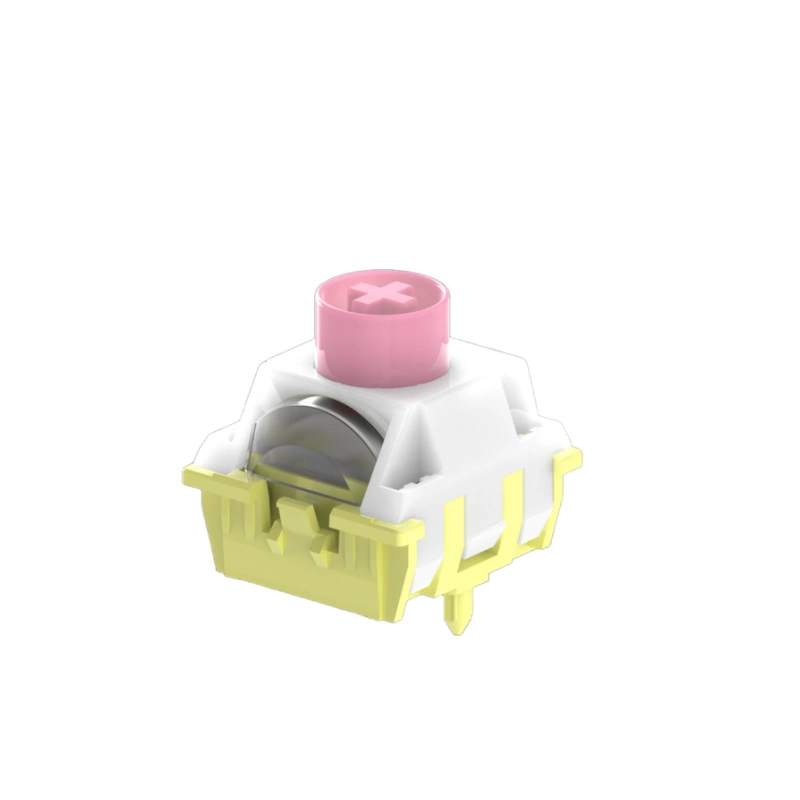

The Extreme Magnetic Keyboard Switch is an upgraded version of the magnetic keyboard switch, designed specifically for high-end gaming keyboards and RGB mechanical keyboards.
This version adds an integrated light diffusion structure to the base polar magnetic keyboard switch PRO, optimizing RGB lighting performance for more even LED light diffusion and a brighter, softer lighting effect.Combined with advanced magnetic induction technology, this switch boasts ultra-fast response speed, adjustable actuation distance, and a lifespan of over 100 million keystrokes.
The Polar Magnetic Keyboard Switch PRO boasts all the performance advantages of the base Magnetic Keyboard Switch, plus performance upgrades.
High-end positioning: The Pro+ is designed specifically for high-end keyboard projects, positioned as a top-tier performance (V1) solution.
Superior RGB lighting effects: An independent light guide structure delivers more uniform and stable lighting effects than the Pro.
More stable response: The Pro+ provides more stable key response and feel even under heavy use.
Greater customization: Supports higher-level OEM customization, facilitating differentiated product development.
High-end applications: The Pro+ is better suited for gaming, esports, and high-end custom keyboards.
The Extreme Magnet Switch Pro+ inherits all the core features of the standard Pro version, including the same linear feel, actuation force, durability, and reliable magnetic induction performance.
The Polar Magnetic Switch Pro+ inherits all the core features of the standard Pro version, including linear feel, actuation force, durability, and stable magnetic induction performance.
Furthermore, the Pro+ adds a light diffuser, delivering more uniform RGB lighting effects, reducing uneven lighting, and enhancing the overall visual experience. This upgrade makes it ideal for high-end keyboards and OEM projects, meeting the dual demands of high performance and sophisticated lighting effects.

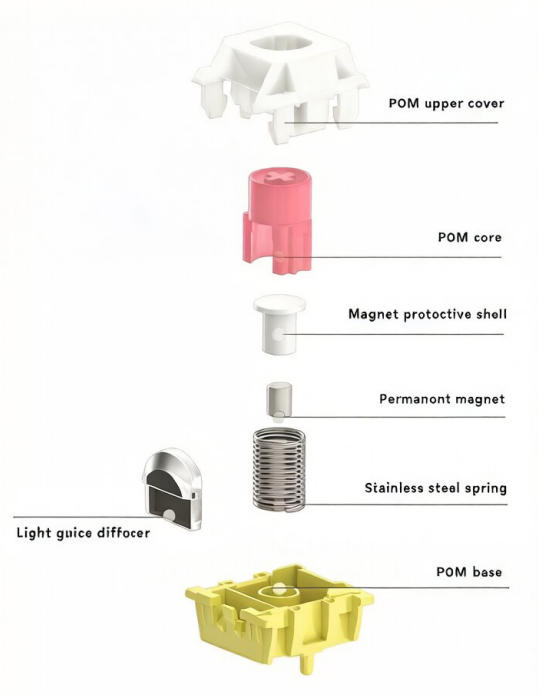

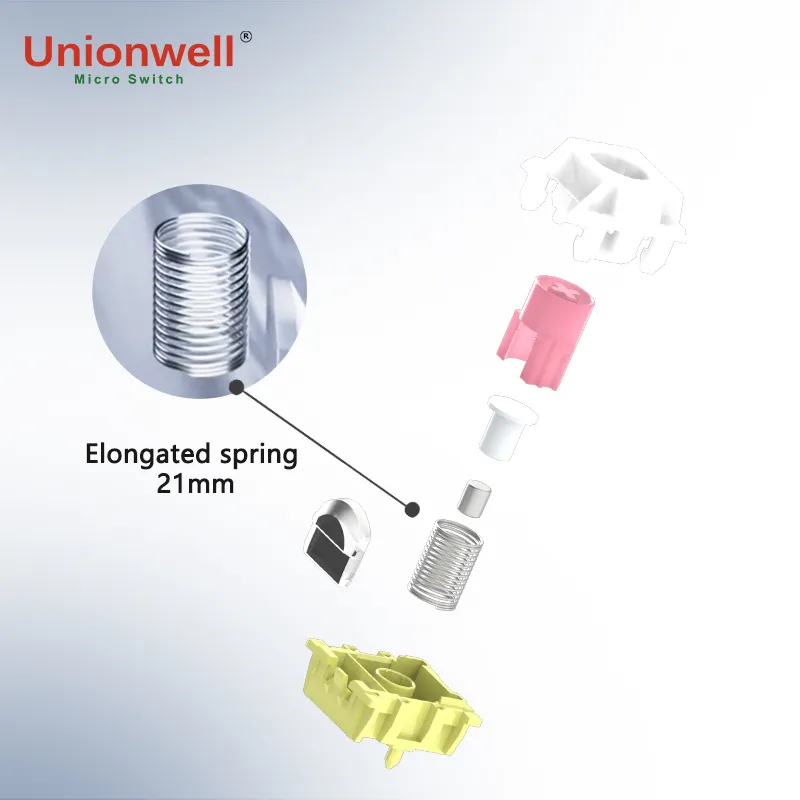

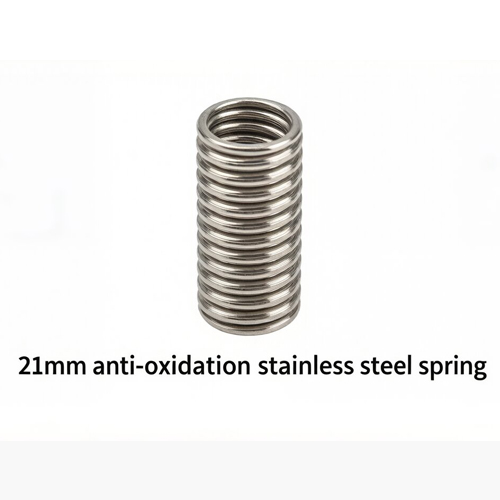

The built-in high-precision extended spring system provides three guarantees:
Ensures rapid key rebound
lsolates external pressure interference
Maintains the optimal working distanceof the magnet.

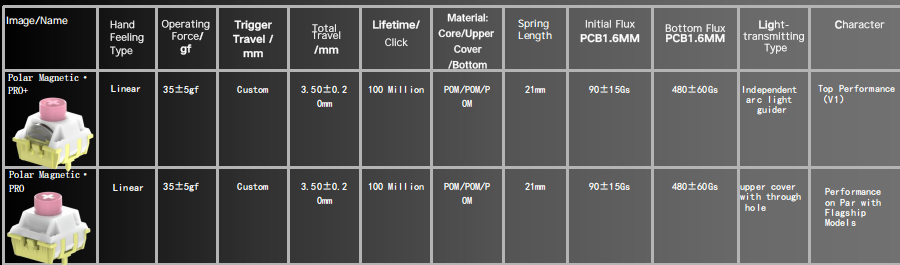

.png "Polar_Magnetic_Keyboard_Switch_Pro_vs_Pro+_Comparison_Table(1).png")
Parameter | Polar Magnetic PRO+ | Polar Magnetic PRO |
Hand Feeling Type | Linear | Linear |
Operating Force | 35±5gf | 35±5gf |
Trigger Travel | Custom | Custom |
Total Travel | 3.5±0.2 mm | 3.5±0.2 mm |
Lifetime | 100 Million Clicks | 100 Million Clicks |
Material (Core / Upper / Bottom) | POM / POM / POM | POM / POM / POM |
Spring Length | 21 mm | 21 mm |
Initial Flux (PCB 1.6mm) | 90±15Gs | 90±15Gs |
Bottom Flux (PCB 1.6mm) | 480±60Gs | 480±60Gs |
Light Transmission Type | Independent Light Guide | Upper Cover with Through Hole |
Price (RMB) | 5 | 3 |
Product Positioning | Top Performance (V1) | Performance Comparable to Flagship Models |
Polar Magnetic switch PRO+ Parameters
Operating force | 35gf±5gf |
Total Travel | 3.50±0.2mm |
Full stroke pressure | ＜85gf |
Mechanical lifespan/click | ＞100million cycles |
Operating temperature | -40℃~+80℃ |
Operating humidity | ≤85%RH |
Hand Feeling Type | Linear |
Material：Core/Upper Cover/ Buttom | POM/POM/POM |
Spring Length | 21mm |
Initial Flux PCB 1.6MM | 90±15Gs |
Bottom Flux PCB 1.6MM | 480±60Gs |
Light-transmitting Type | upper cover with through hole |
Character | Performance on Par with Flagship Models |
