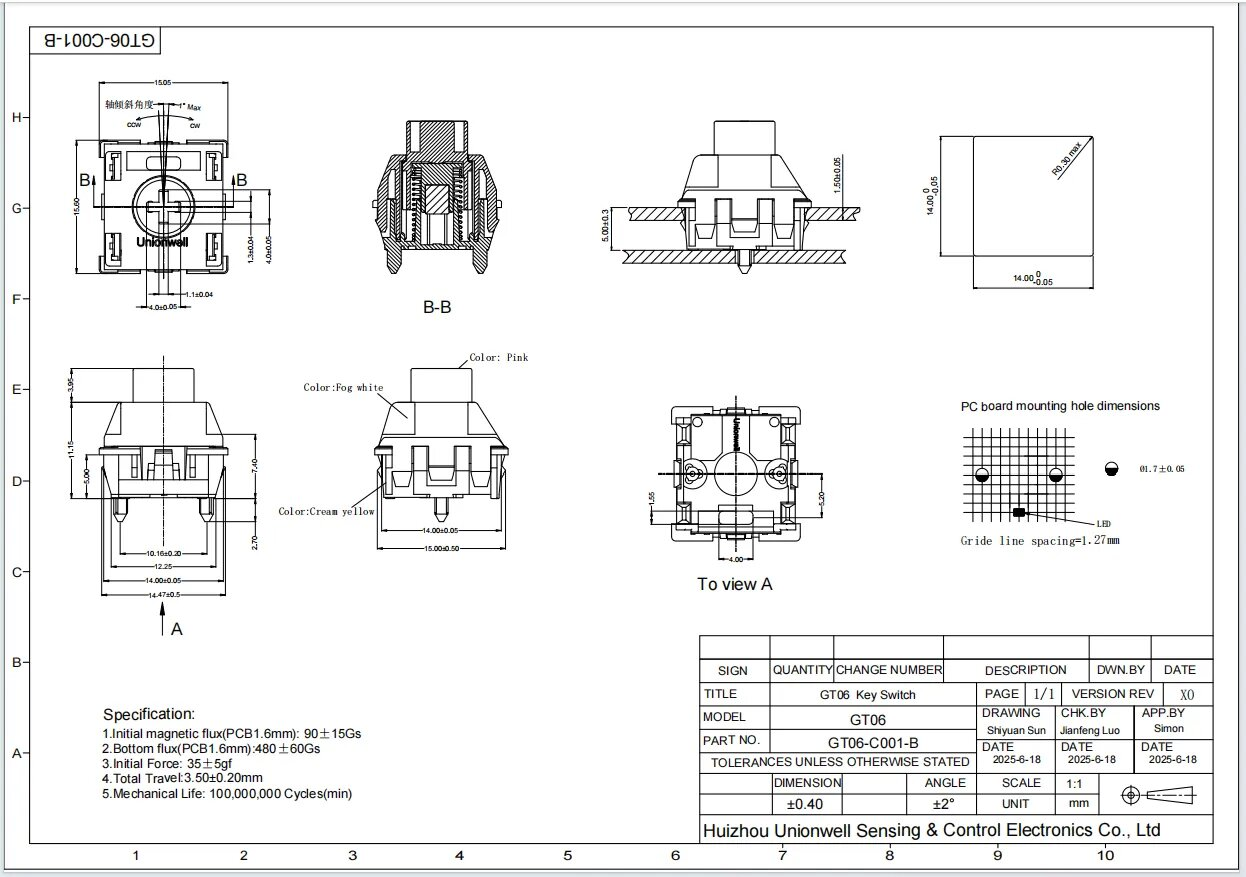

Model Number: GT06-C001-B
Operating Temperature: -40℃~+80℃
Hand Feeling Type: Linear
Lifetime: 100Million Click
Spring Length: 21mm
Total Travel：3.50±0.20mm
Initial Flux PCB 1.6MM: 480±60Gs
Application: Gaming, office work;
Character:Customizable adjustable switch travel, stable performance

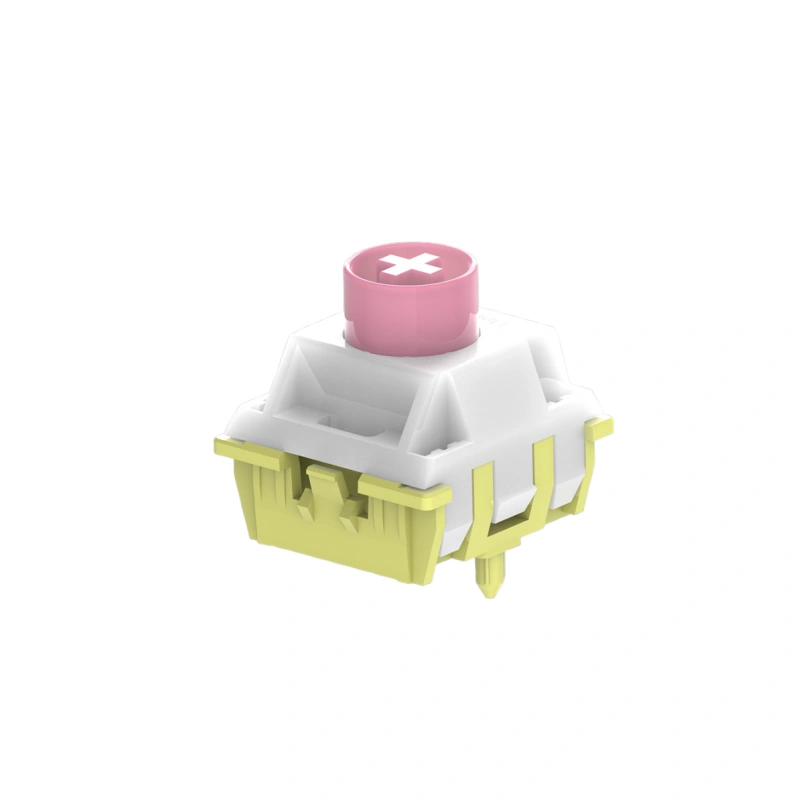

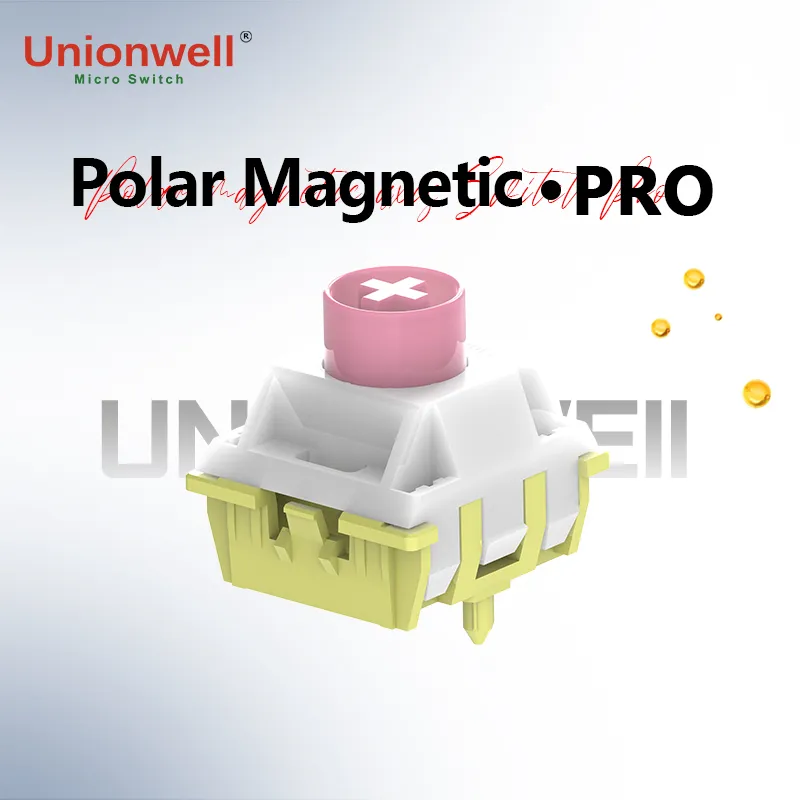

The Polar Magnetic Switch PRO is a next-generation magnetic keyboard switch designed for high-performance gaming keyboards and professional typing devices.
This switch utilizes magnetic induction technology, enabling ultra-fast response times, adjustable actuation distance, and an exceptionally long lifespan of over 100 million keystrokes. Its smooth feel and stable performance are loved by many gamers.This model also comes in an RGB Polar Magnetic Keyboard Switch PRO+ version with lighting effects. Please click the link to see more details.
Ultra-fast magnetic induction technology for rapid response.
Customizable trigger distance for a personalized travel experience.
100 million keystroke lifespan for long-lasting durability.
Smooth, linear touch feel, optimized for gaming and typing.
High-precision trigger detection ensures stable and reliable performance.
Dual-module idependent The body is divided into two intelligently cooperating modules:-
The two modules are flexibly connected via a patented"ball-and-socket joint", allowing them to return to their originaposition smoothly like the base of a roly-poly toy. |
|

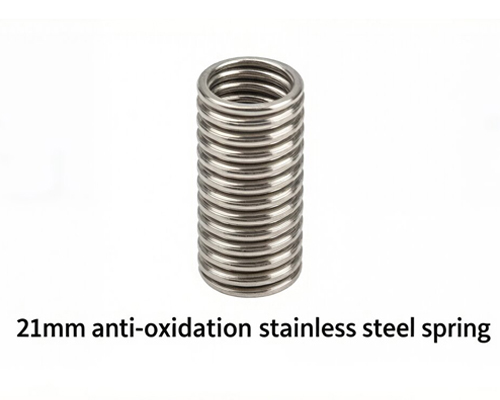

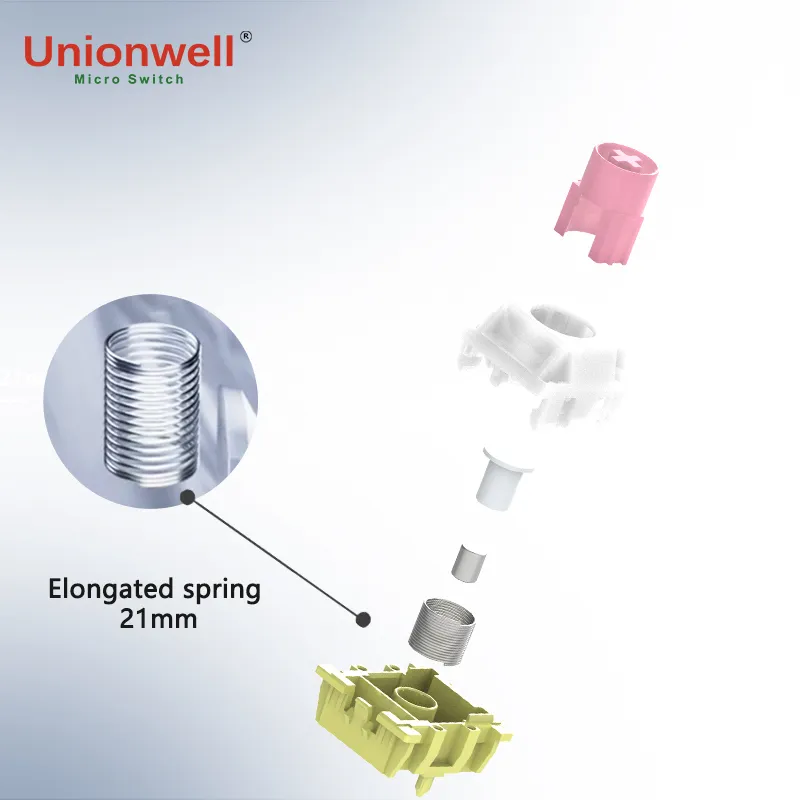

 | Spring buffer protection The built-in high-precision extended spring system provides three guarantees:
|

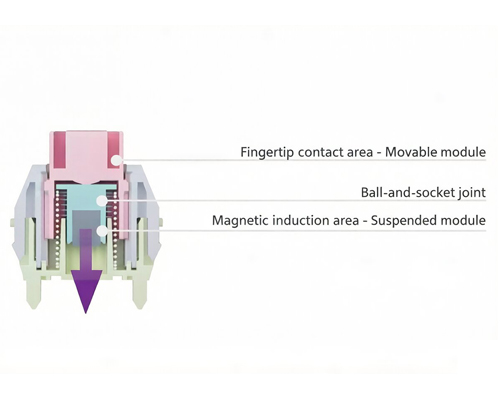

Intelligent pressure transmission system State of positive vertical pressing Vertical press - Both modules are pressed down synchronously to trigger signals precisely. |  |

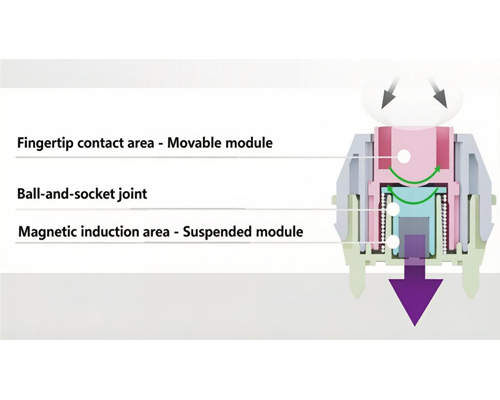

 | State of lateral offset pressure When pressed laterally - The movable module automatically adjusts its deflection angle via the ball-and-socket joint, while the suspended module remains vertically stable at all times to prevent magnetic field deviation. |

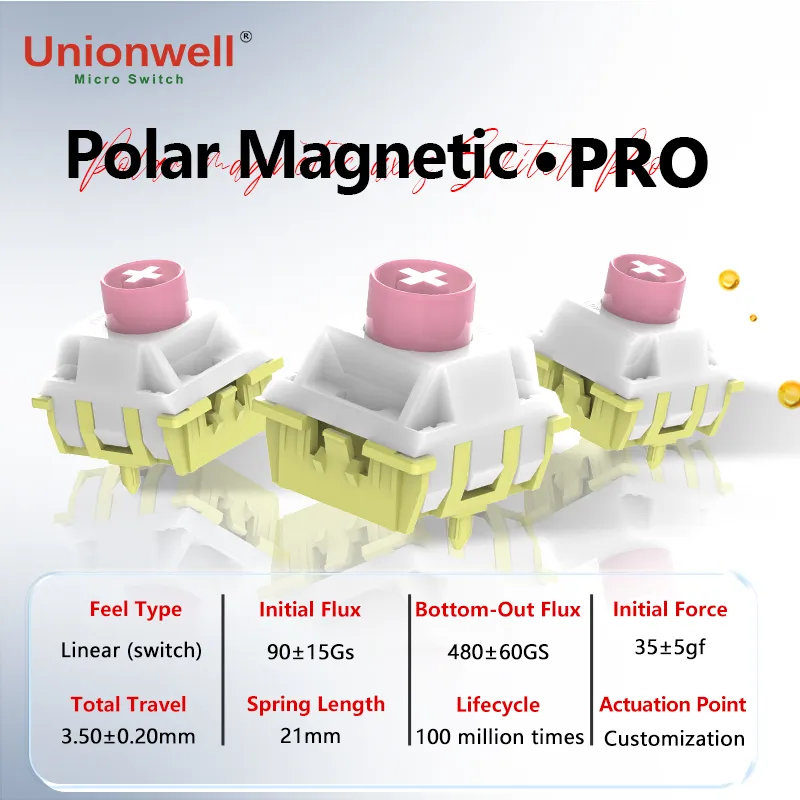

Operating force | 35gf±5gf |
Total Travel | 3.50±0.2mm |
Full stroke pressure | ＜85gf |
Mechanical lifespan/click | ＞100million cycles |
Operating temperature | -40℃~+80℃ |
Operating humidity | ≤85%RH |
Hand Feeling Type | Linear |

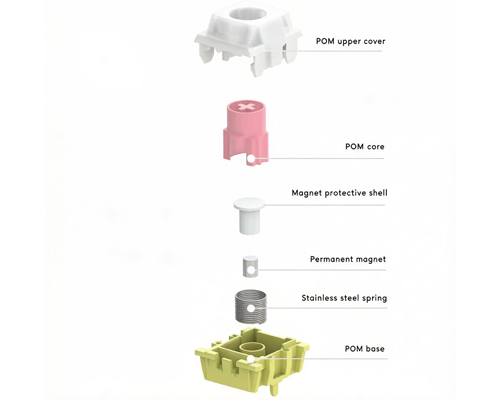

Material：Core/Upper Cover/ Buttom | POM/POM/POM |
Spring Length | 21mm |
Initial Flux PCB 1.6MM | 90±15Gs |
Bottom Flux PCB 1.6MM | 480±60Gs |
Light-transmitting Type | upper cover with through hole |
Character | Performance on Par with Flagship Models |
